In the precision-driven world of metal fabrication, a seemingly flat sheet of metal can hide waves, buckles, and stresses invisible to the naked eye. These imperfections, if left uncorrected, can compromise the integrity of everything from automotive panels to aerospace components. This is where sheet metal leveling machines step in as the unsung heroes of manufacturing.

These sophisticated pieces of equipment have revolutionized metal processing by transforming irregular, stressed metal sheets into perfectly flat surfaces ready for fabrication. Through a carefully orchestrated dance of rollers and precise mechanical pressure, leveling machines ensure that every metal sheet meets the exacting standards of modern manufacturing.

Definition and Purpose of Sheet Metal Leveling Machines

Sheet metal leveling machines are industrial tools that flatten and straighten metal sheets by removing waves, buckles, and internal stresses. These machines make metal sheets suitable for accurate fabrication by improving their dimensional accuracy and flatness. The equipment serves manufacturing needs across automotive, construction, and aerospace sectors by enhancing product quality standards.

Through precise mechanical operations, leveling machines correct surface irregularities and prepare materials for further processing. Their role in manufacturing helps reduce production costs while meeting tight tolerance requirements for metal components.

Basic Components of a Sheet Metal Leveling Machine

Sheet metal leveling machines contain several essential parts working together. The main frame provides structural support while holding other components in place. Work rolls perform the actual flattening operation through controlled pressure application. The movable beam and pressing mechanism control the interaction between rolls and metal sheets.

The machine’s drive system powers the operation, while the lubrication system maintains smooth movement between components. An electrical control system manages settings and operations. Each component requires exact specifications and proper maintenance to produce flat, properly processed metal sheets.

Step-by-Step Operational Process of Leveling Machines

The operation starts when metal sheets enter through the feeding mechanism. The material then moves between multiple offset rollers, which apply specific pressure points. As the sheet progresses, it undergoes repeated bending and counter-bending actions through these rollers.

The sheet experiences alternating stress as it passes through upper and lower roller sets. This mechanical process stretches the metal fibers to equal lengths, removing uneven areas. The continuous bending motion eliminates internal stresses and surface irregularities. The final result is a flat metal sheet ready for manufacturing applications.

Types of Sheet Metal Leveling Machines

Three main categories of metal leveling equipment serve different manufacturing needs. Simple roller levelers work well with thicker materials but offer basic flattening capabilities. Precision roller levelers provide better control over the finishing process and produce highly flat surfaces. Tension levelers combine stretching with bending actions for optimal results.

The choice between these machines depends on material thickness, output requirements, and production volume. Simple levelers suit basic operations, while precision units meet strict tolerances. Each type offers specific advantages for different metal processing applications, from standard construction materials to specialized aerospace components.

Principles of Metal Deformation in Leveling

The leveling process bends metal sheets past their yield point to create permanent changes in shape. When metal passes through the rollers, the material stretches beyond its elastic limit, which prevents it from returning to its original form. This mechanical action makes shorter metal fibers match proper length until they match the length of other fibers in the sheet.

Several factors determine how metal responds during leveling. Material thickness affects the amount of force needed for proper deformation. The metal’s yield strength influences roller settings and processing speed. Different material types also require specific adjustments to achieve optimal flattening results.

Adjustable Parameters in Leveling Machines

Metal leveling machines allow operators to modify key settings for optimal performance. Roller spacing determines the degree of bending applied to the metal sheet. The tension controls material stress during processing, while feed speed affects how long the metal stays under pressure. These settings work together to produce specific results.

Parameter adjustments directly affect surface quality, flatness, and material properties. For example, reducing roller spacing increases the bending force, while higher tension helps remove waves. Setting these variables correctly depends on material thickness, type, and desired outcome specifications. Proper calibration of these parameters leads to consistent, high-quality metal sheets.

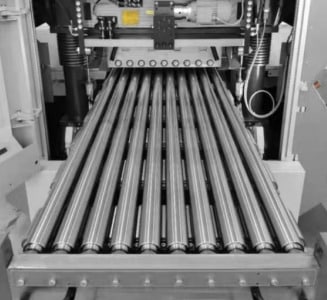

Role of Rollers in the Leveling Process

The rollers in sheet metal leveling machines apply measured pressure to straighten metal sheets through their arranged positions. These mechanical components work in sets, with upper and lower rollers creating specific contact points across the material’s surface.

Roller designs vary based on processing requirements. Some feature crowned shapes for handling wider materials, while others maintain cylindrical profiles for standard applications. The materials used in roller construction include hardened steel and special alloys that resist wear.

Proper roller positioning affects output quality. Misaligned rollers create uneven pressure distribution, leading to incomplete flattening. Regular maintenance of roller surfaces and bearings helps maintain consistent results in metal sheet processing.

Importance of Proper Gap Settings

Gap settings in leveling machines refer to the spacing between upper and lower rollers that process metal sheets. These settings directly affect how much pressure the rollers apply to the material during flattening. When gaps are too wide, the metal receives insufficient pressure, resulting in under-leveled sections. Conversely, overly narrow gaps create excess force, leading to surface marks or material distortion.

Operators determine gap differences by considering material thickness, hardness, and desired flatness requirements. Regular measurement and adjustment of roller gaps maintain consistent quality in metal sheet production. Machine operators use gauges and digital measuring tools to verify proper spacing during setup and processing.

Automated Features in Modern Leveling Machines

Modern sheet metal leveling machines incorporate digital control systems and sensor technology to enhance processing accuracy. These systems monitor material flow, roller pressure, and sheet alignment through integrated measurement devices. Programmable controls allow operators to store and recall settings for different material types and thicknesses.

Computer-based systems track production data and adjust parameters automatically during operation. Sensors detect variations in material properties and thickness, triggering real-time adjustments to maintain consistent output quality. The uncoiling and leveling production leads to higher production rates and improved repeatability in metal sheet processing.

In Conclusion

Sheet metal leveling machines represent a critical junction between raw materials and finished products in modern manufacturing. Their ability to transform imperfect metal sheets into precisely flattened materials has become indispensable across industries, from construction to aerospace. The continuous evolution of these machines, from simple roller systems to sophisticated automated solutions, reflects the growing demands for precision in metal fabrication.

As manufacturing technology advances, sheet metal leveling machines continue to adapt, incorporating smart features and automated controls that enhance their capabilities. Their role in ensuring quality, reducing waste, and improving production efficiency makes them an invaluable asset in any metal processing facility, underlining their significance in shaping the future of manufacturing.
